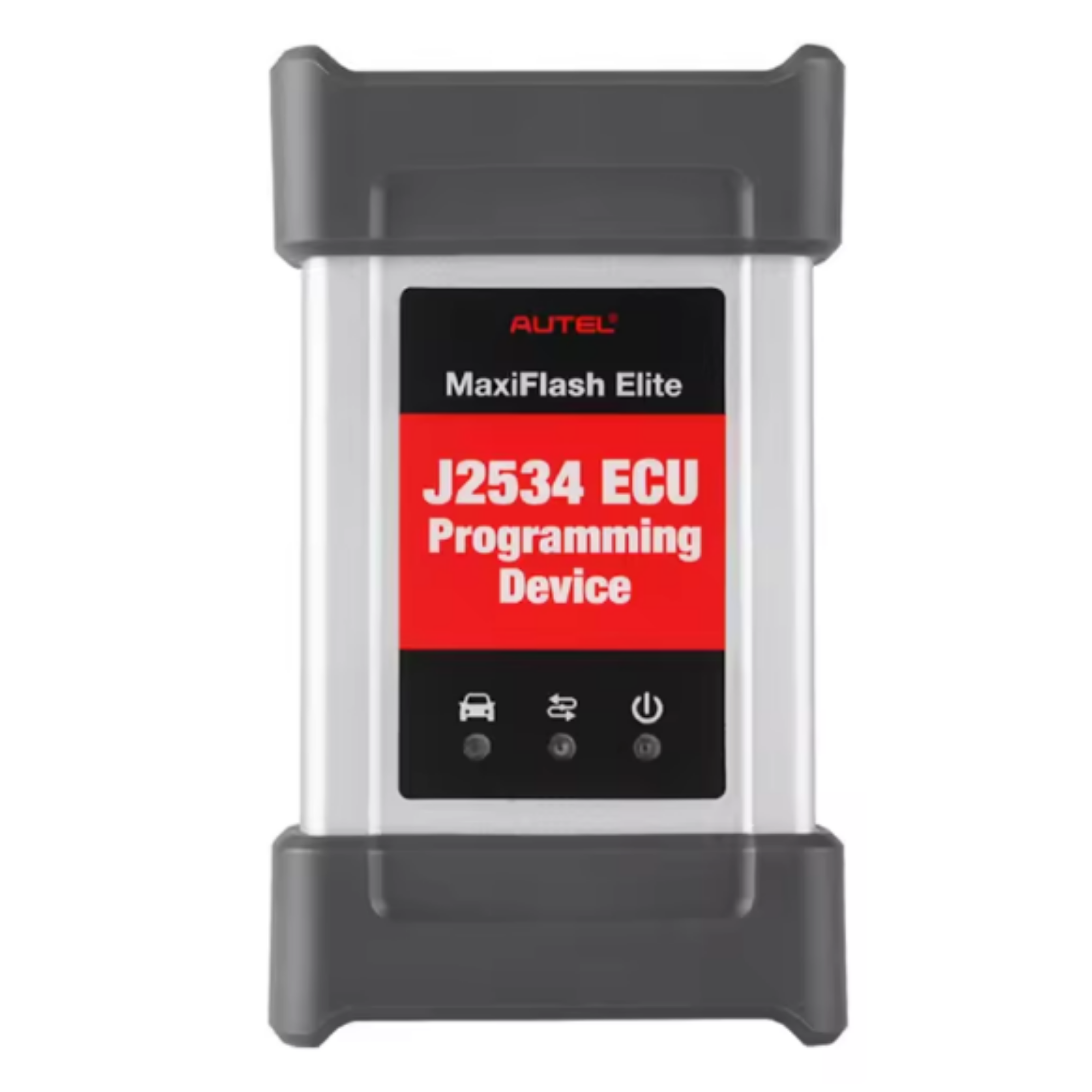

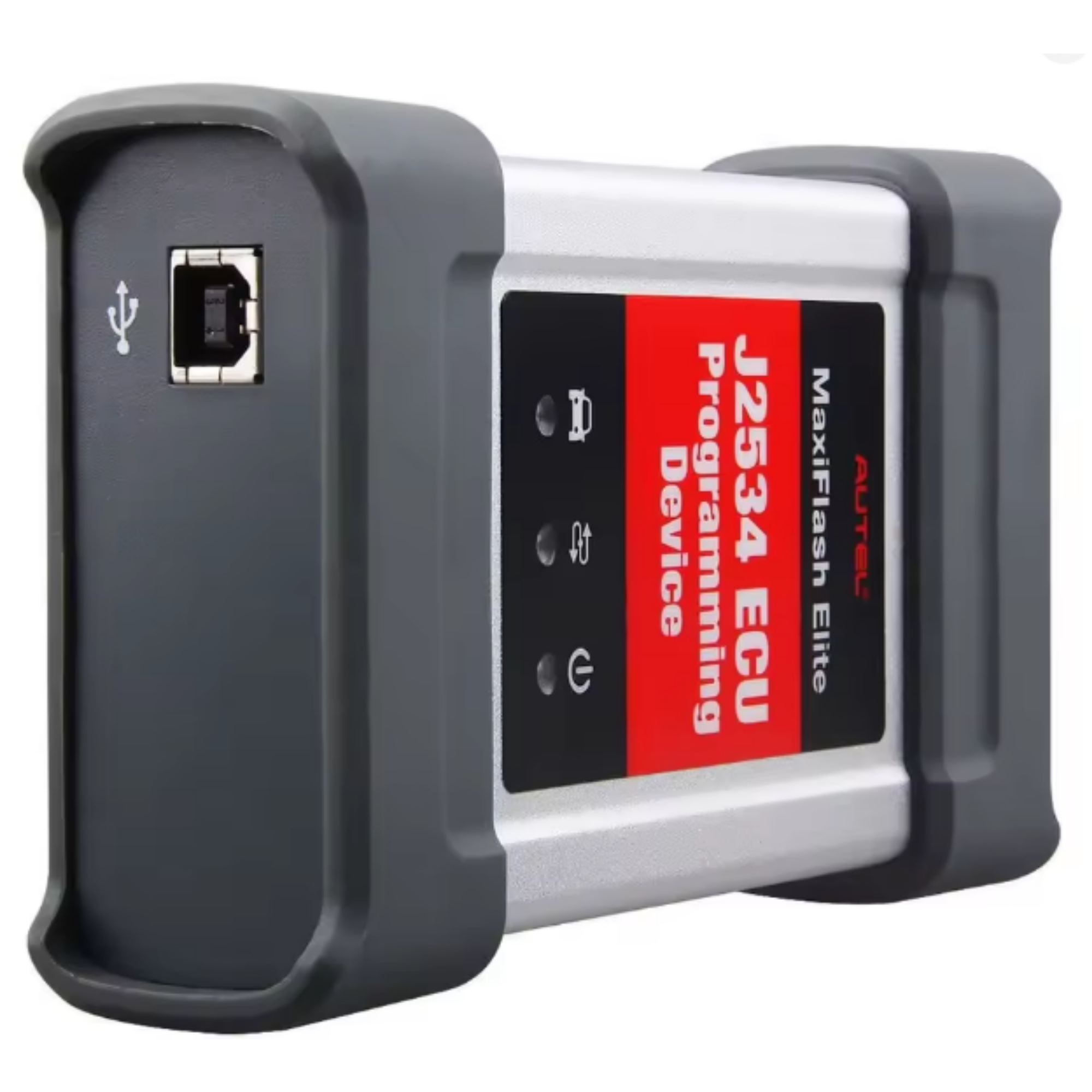

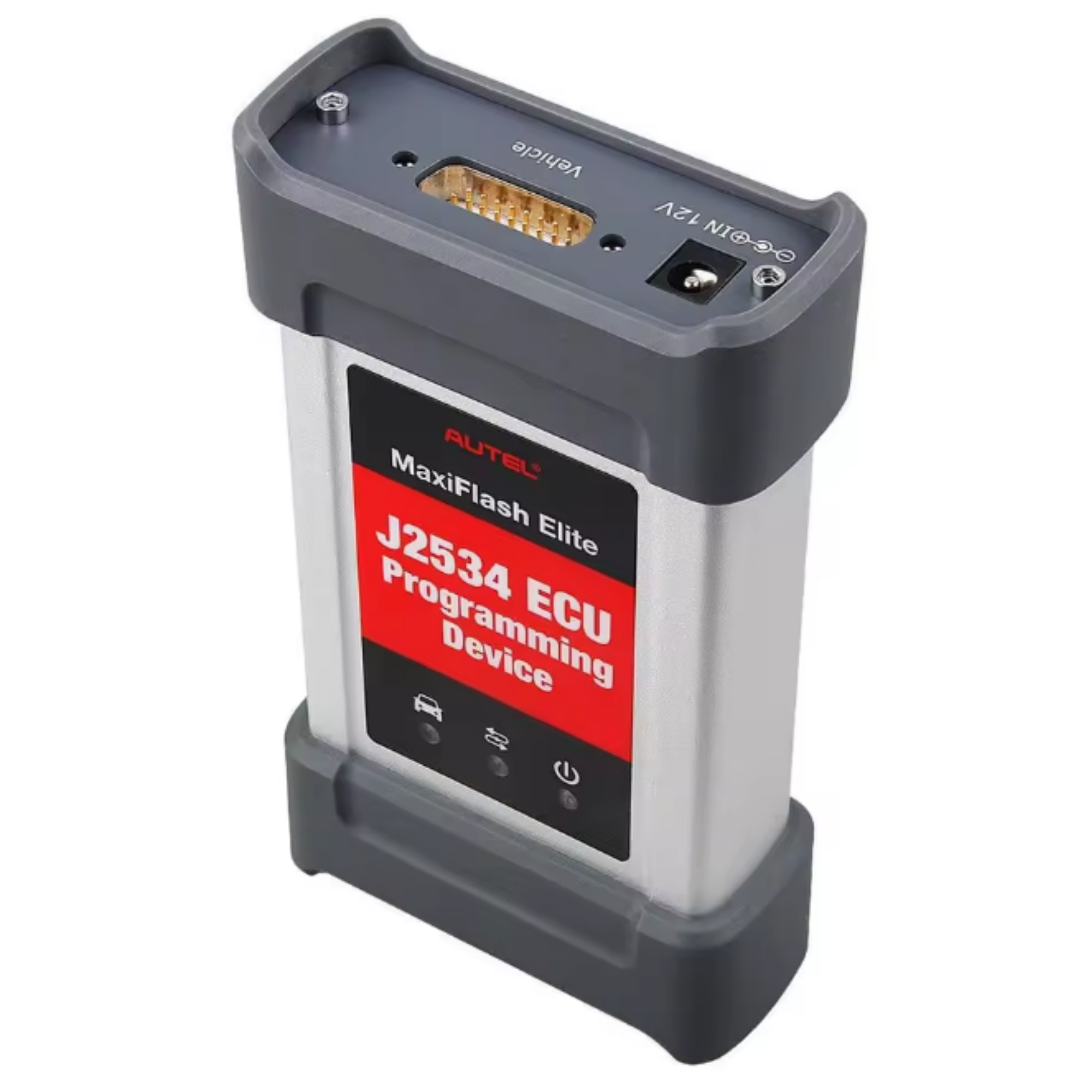

Autel MaxiFlash J2534 ECU Programming Device For Autel MaxiSys Elite MaxiSys MS908PRO II

Description

The MaxiFlash Elite J2534 interface is a Bluetooth-enabled vehicle communication interface (VCI) and a J2534-1 and J2534-2 compliant pass-thru programming device. The MaxiFlash Elite supports D-PDU, ISO 22900-1 & ISO 22900-2 protocols, and is RP1210 compliant. The MaxiFlash Elite is compatible with Windows computers that have an applicable OE subscription for vehicle diagnostics and module programming, supporting Toyota, BMW, and Mercedes.

Specifications

Communications: Wireless BT V2.1 + EDR,USB 2.0

Wireless Frequency: Wireless BT V2.1+EDR, 2.4GHz

Input Voltage Range: 12VDC to 24VDC

Supply Current: 170mA @ 12VDC 100mA @ 24VDC

Operating Temperature: -10°C to +60°C (ambient)

Storage Temperature: -20°C to +70°C (ambient)

Dimensions: Length: 149 mm (5.87") Width:
86mm (3.38") Height: 35 mm (1.28")

Weight: 0.29kg (0.64lb)

Compatibility:

Autel:
MS908 Pro, MS908 Pro II
MK908 Pro, MK908 Pro II
Elite, Elite II

Packing List:

AUTEL MAXIFLASH ELITE* 1
