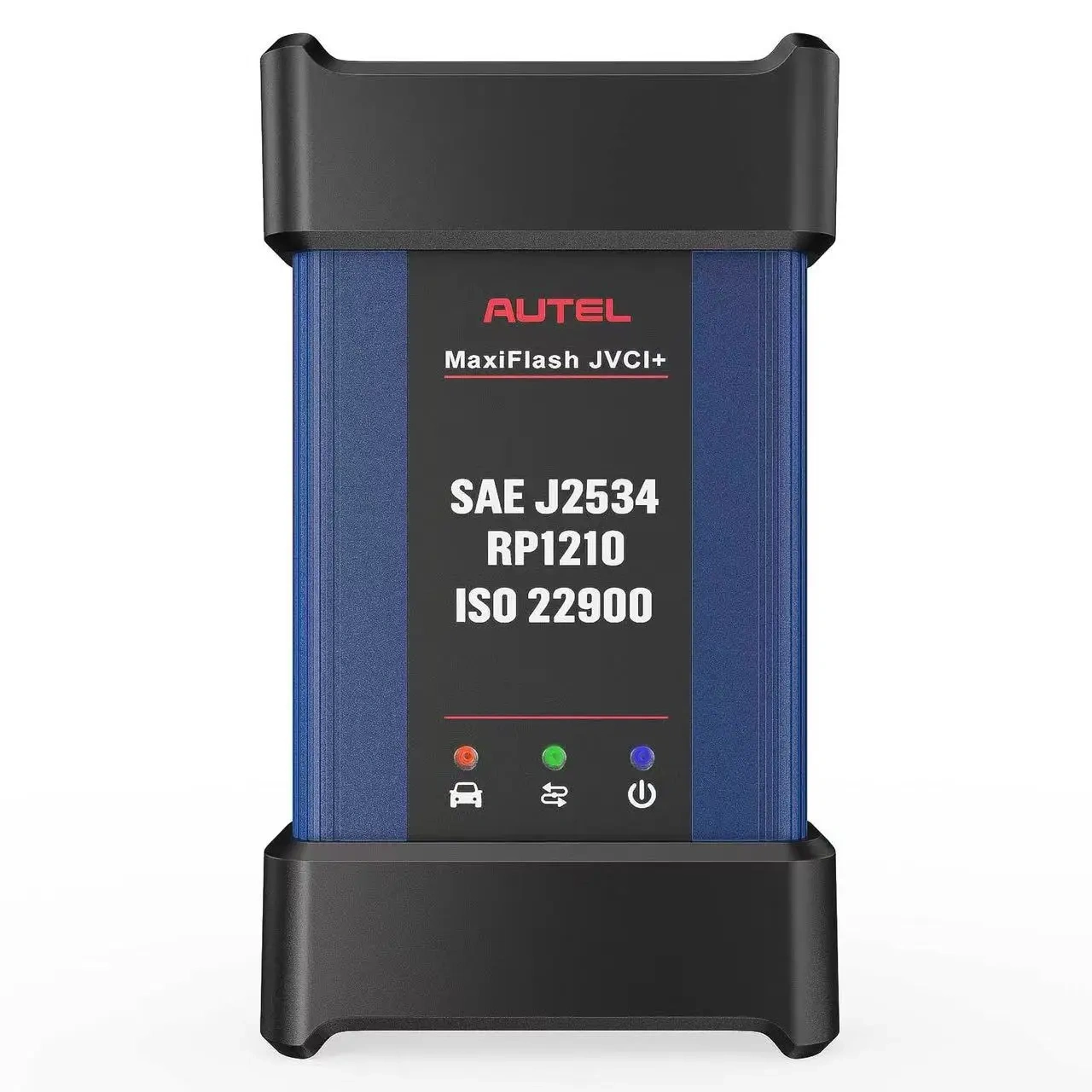

Autel MaxiFlash JVCI+ J2534 ECU Programming Device Works with IM608PRO II to program ECU on specific BMW/ BENZ for specific functions.
What is Autel MaxiFlash JVCI+?
As a multi-protocol Pass-Thru vehicle interface, MaxiFlash JVCI+ is a fully compliant SAE J2534-1 & SAE J2534-2 device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance, and flexibility.
NOTE
● Old JVCI is discontinued. This is MaxiFlash JVCI+ Bluetooth Device is compatible with Autel IM608 Pro II, Old IM608 and IM608Pro with old JVCI are not compatible with this MaxiFlash JVCI+.
● If the MaxiFlash JVCI+ of your device is broken or missed, you can buy a new one to replace.
Compatibility
Work with OEM Automaker Diagnostic Software via Laptop/ IM608 PRO II
Autel MaxiFlash JVCI+ Feature
● Works with IM608PRO II to program ECUs on specific BMW/ BENZ for specific functions.
● Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
● Performs the standard PassThru J2534 functionality
● Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics
● Fast performance ensures quickly reprogramming even the newest controllers
● Wireless with advanced networking functions
● Built-in wireless and data storage
● Rugged design capable of withstanding harsh environments
● Fast performance ensures reprogramming even the newest controllers & Internet upgradable and updatable.
ECU PROGRAMMING FOR BENZ/ BMW
Replacing the Existing Software/ Firmware in the ECUs
● Programming New EcUs for BENZ/ BMW
● Reprograming Adaptive Data
● ECU Adaptation/ Reprogramming after Refit
● Fixing Software-controlled Drivability & Emission Issues
● Enhance the Durability of Mechanical Parts
● Improve Fuel Efficiency
● Reduce Power Loss
● Benz
- Post-programming Learning Function
- Programming Restoration
- Vehicle Configuration Synchronization
- Read/ Write Adjustment Value
● BMW
- Support program to 2211
- Support HTTP Program
- Automatic Calculation programming file
- Personalized Data Backup
CAN FD / DoIP PROTOCOLS
J2534 BRING CAN FD / DoIP/ SAE J2534/ D-PDU/ RP1210 PROTOCOLS
- CAN FD: For MY2020+ FM Models, No Need CAN FD Adapters
- DoIP: For BMW E/ F/ G Chassis, Jaguar, and Land Rover vehicle make.
Specification
● Communications: Wireless BT V2.1 + EDR,USB 2.0
● Wireless Frequency: Wireless BT V2.1+EDR, 2.4GHz
● Input Voltage Range: 12VDC to 24VDC
● Supply Current: 170mA @ 12VDC 100mA @ 24VDC
● Operating Temperature: -10°C to +60°C (ambient)
● Storage Temperature: -20°C to +70°C (ambient)
● Dimensions(LxWxH): 149 mm(5.87")x86mm (3.38")x35 mm(1.28")
● Weight: 1.3kg (2.86lb)
Autel JVCI+ can also be used as J2534 passthru for OE software /subscription to perform reprogramming / key programming/ multi-line OEM diagnostics etc.
