Autel MaxiVCI V200 Bluetooth Interface OBD2 Used With Diagnostic Tablets MS906Pro TS ITS600K KM100 BT609 BT608 ITS600 DoIP CanFD
Description

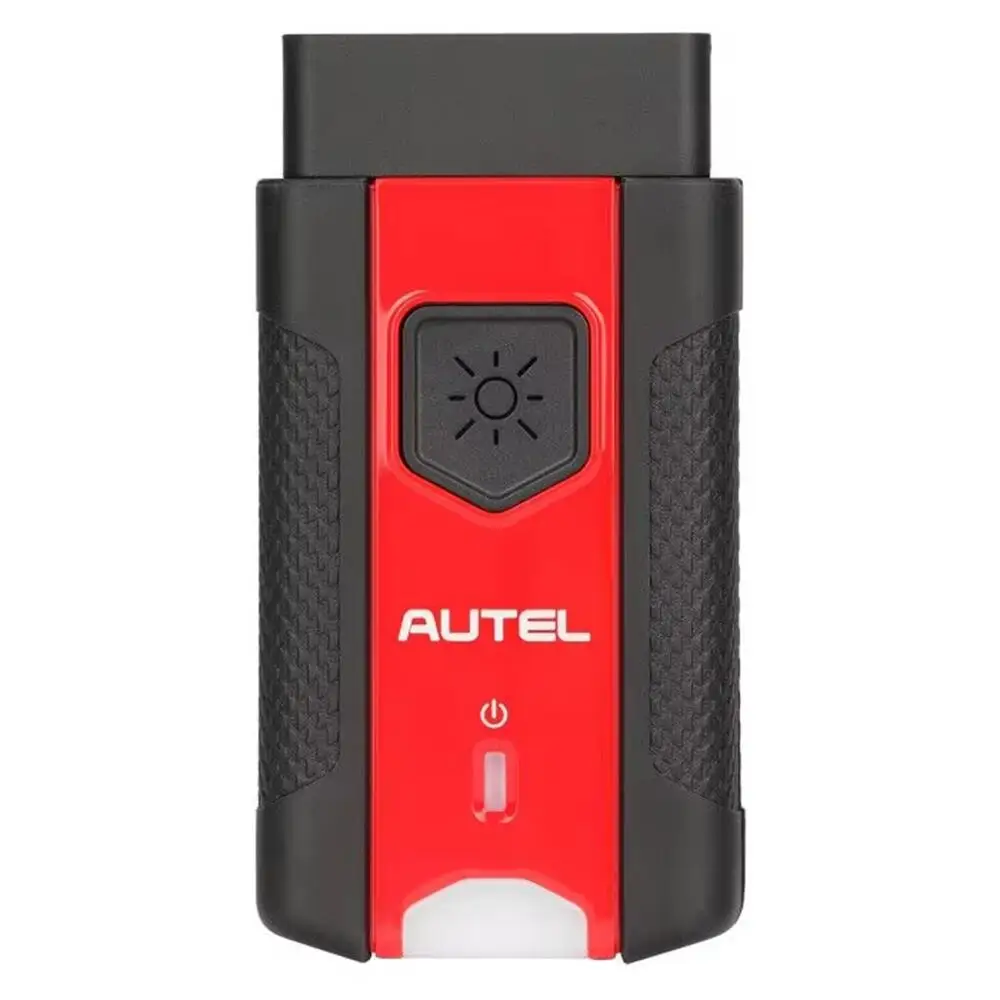

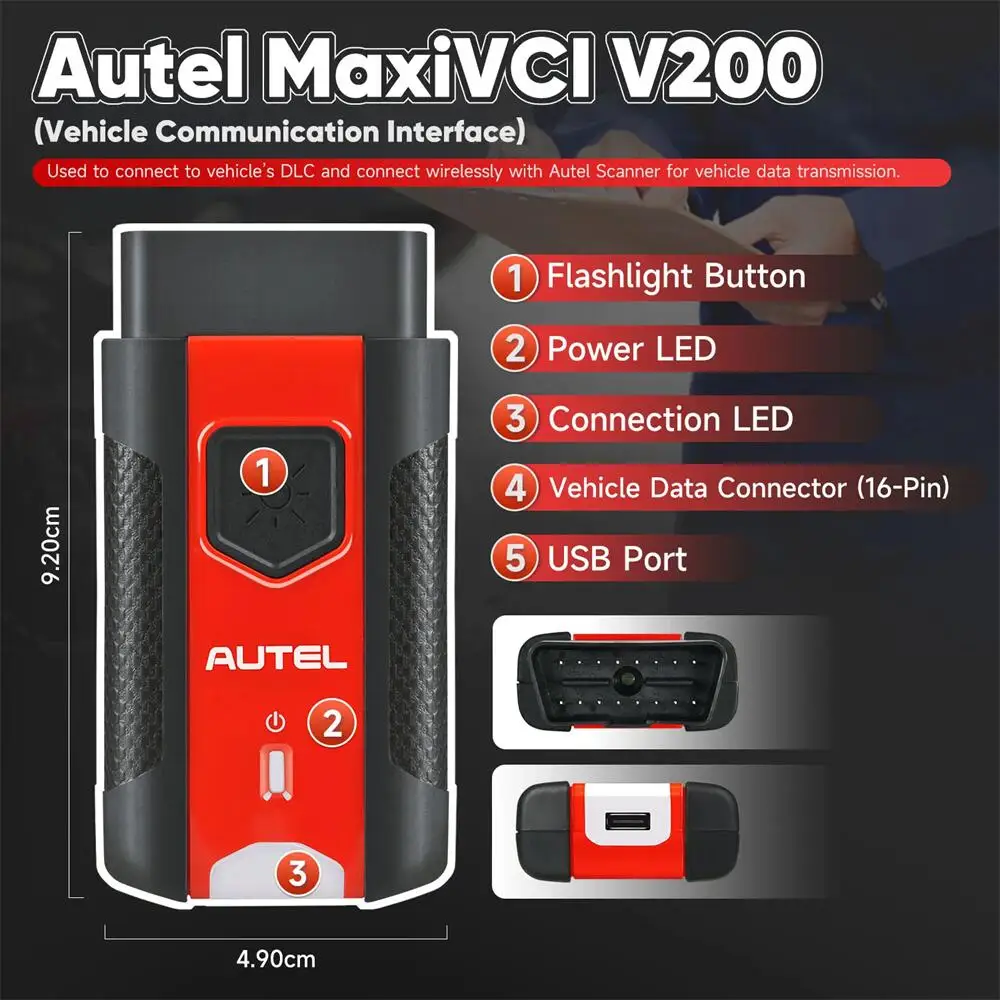

Autel MaxiVCI V200 wireless diagnostic interface is a small interface box used to connect to a vehicle's diagnostic connector (DLC) and connect wirelessly with the MaxiSYS Display Tablet, as well as standalone PC, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless BT technology, with which you are allowed to work freely around the vehicle. The MaxiVCI V200 can communicate with vehicles' electronic control units (ECUs), guaranteeing performance and speed that redefine multi-brand diagnostics. The development of this interface has been focused on reducing the communication time, and ensuring the tool is practical to use. The MaxiSYS diagnostic platform combines the MaxiVCI V200 and the display tablet with technical information into a single program, ensuring quick and simple access to the vehicle to perform comprehensive diagnostics applications.
This is VCI Bluetooth Adapter only for Autel Series Product.
If the VCI Bluetooth Adapter of your device is broken or missed, you can buy a new one to replace.
Highlights:
Compatible with the current line of Autel MaxiSys Diagnostic Tablets:
MS906Pro, MS906Pro-TS, MS909, MS919, Ultra,
As well as: MS906TS, MK908, MS908, MS908S Pro, MS908 Pro and MK908P. Wirelessly connects vehicle ECU to MaxiSYS tablets supporting Bluetooth
MaxiBAS BT608, MaxiBAS BT609, ITS600, ITS600Pro
Autel MaxiIM series IM508/IM608. (Note: Not compatible with Auro IM500/IM600)

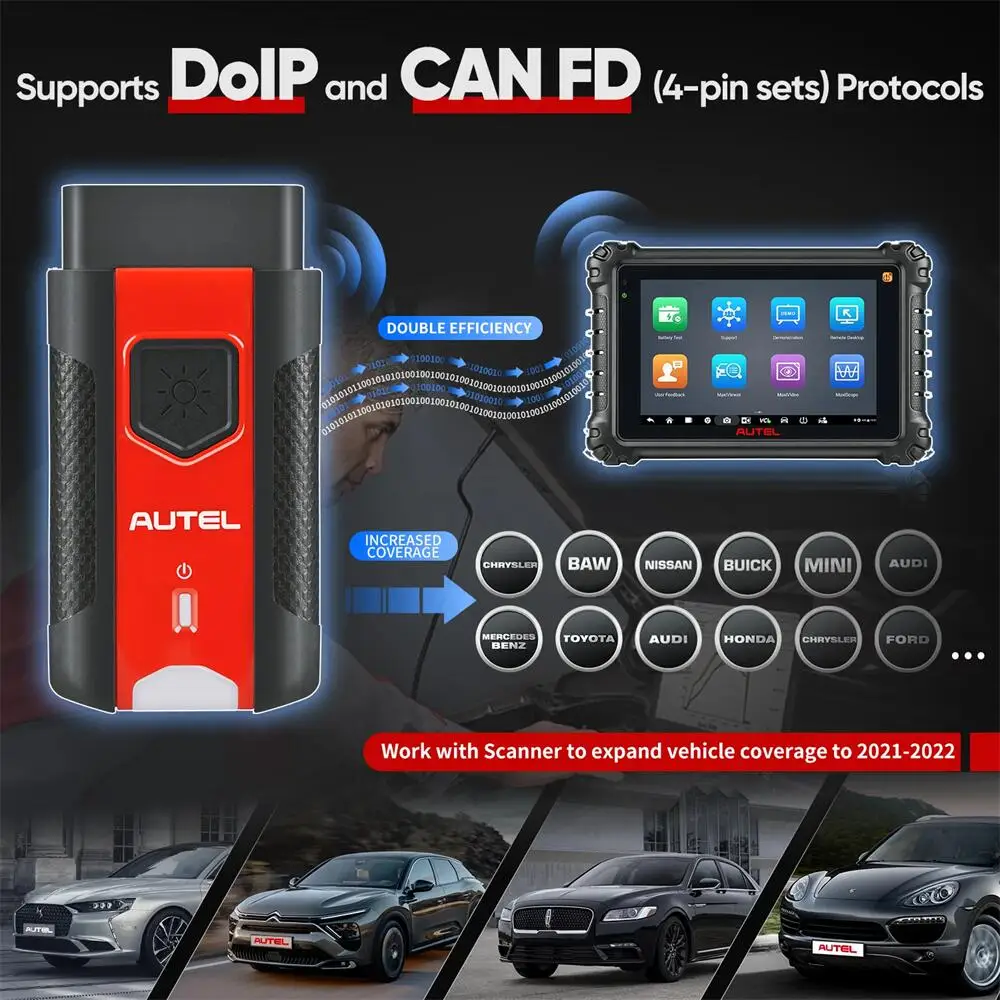

Supports the latest OBD2 Protocols: DoIP and CAN-FD (4-pin sets).
Without out CAN-FD adapter for your JVCI to do CAN-FD.
Built-In Battery, Internet Update, User Friendly
Features:
Wirelessly connects vehicle ECU to MaxiSYS tablets supporting Bluetooth
Features convenient wireless Bluetooth technology enabling tech to perform diagnostics outside of vehicle
Supports comprehensive diagnosis and reading of control modules
Ultra-fast OBDII-port communication within 75 feet
Updateable software via the Internet

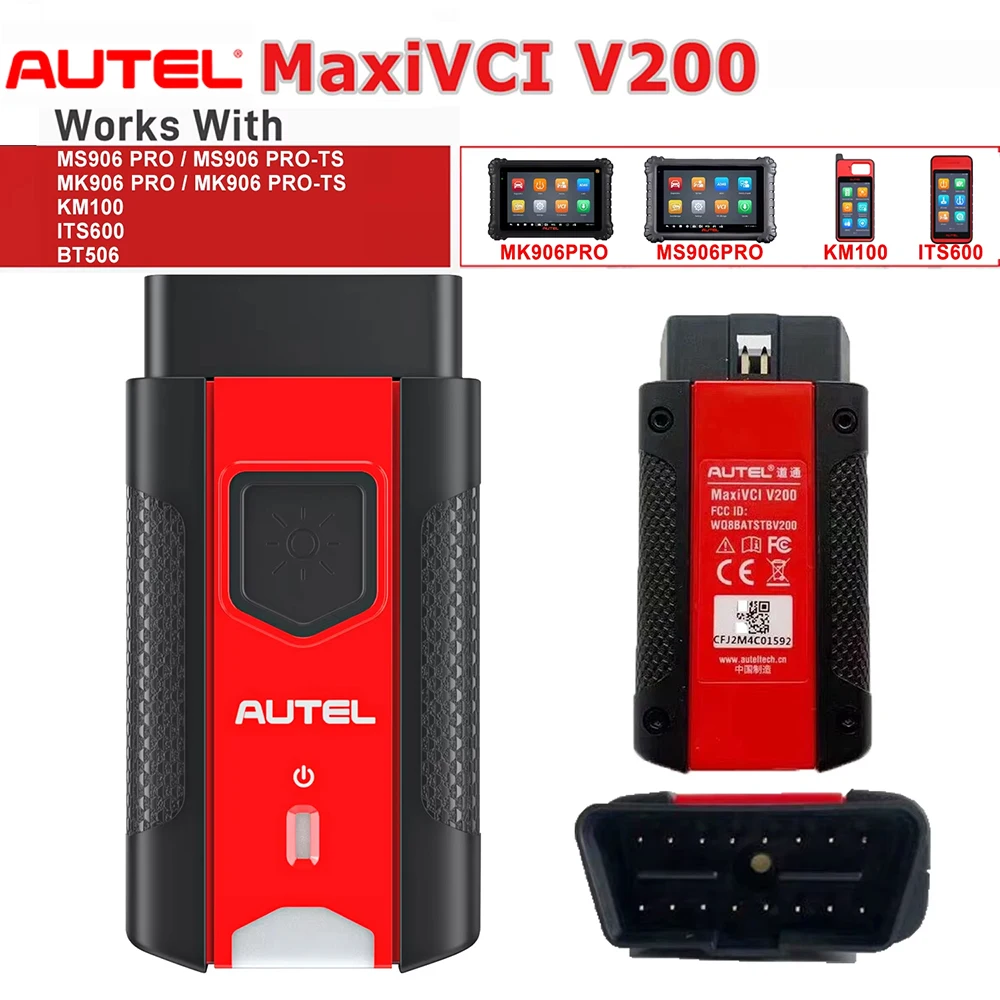

The VCI200 supports DoIP and CAN FD (4-pin sets) and is compatible with the following:
BT608
BT609
ITS600
KM100
MS906BT, requires updates from 2022 or newer.
MS906TS, requires updates from 2022 or newer
MS908 / MS908s, requires updates from 2022 or newer
MS908p / MS908sp, requires updates from 2022 or newer
Elite, requires updates from 2022 or newer
MaxiADAS, requires updates from 2022 or newer
MS906Pro
MS906Pro-TS
MS909
MS909
Ultra
Specification
- Communications: BLE + EDR / USB 2.0
- Wireless Frequency: 2.4 GHz
- Input Voltage Range: 6-36 VDC
- Supply Current: 150 mA @ 12 VDC
- Operating Temperature: -10°C to 60°C (ambient)
- Storage Temperature: -40°C to 80°C (ambient)
- Built-in Battery: 3.7V Lithium Battery

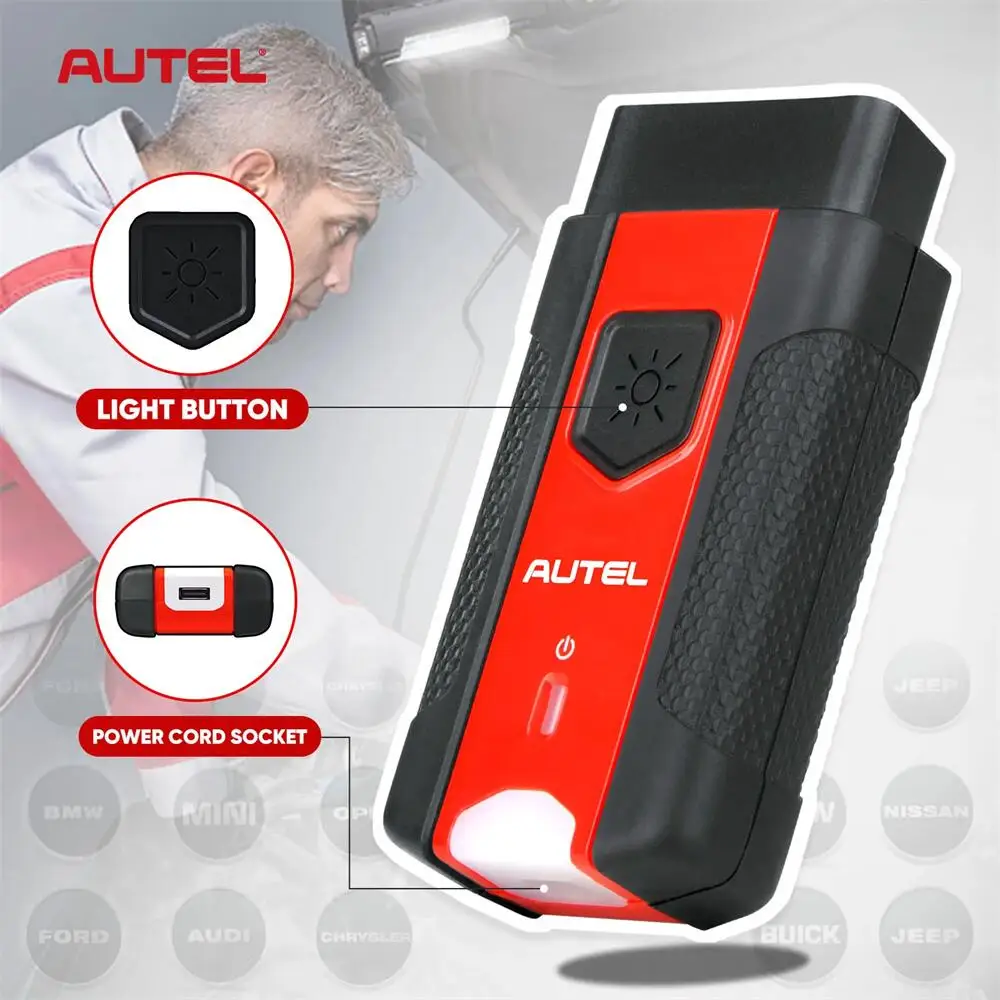

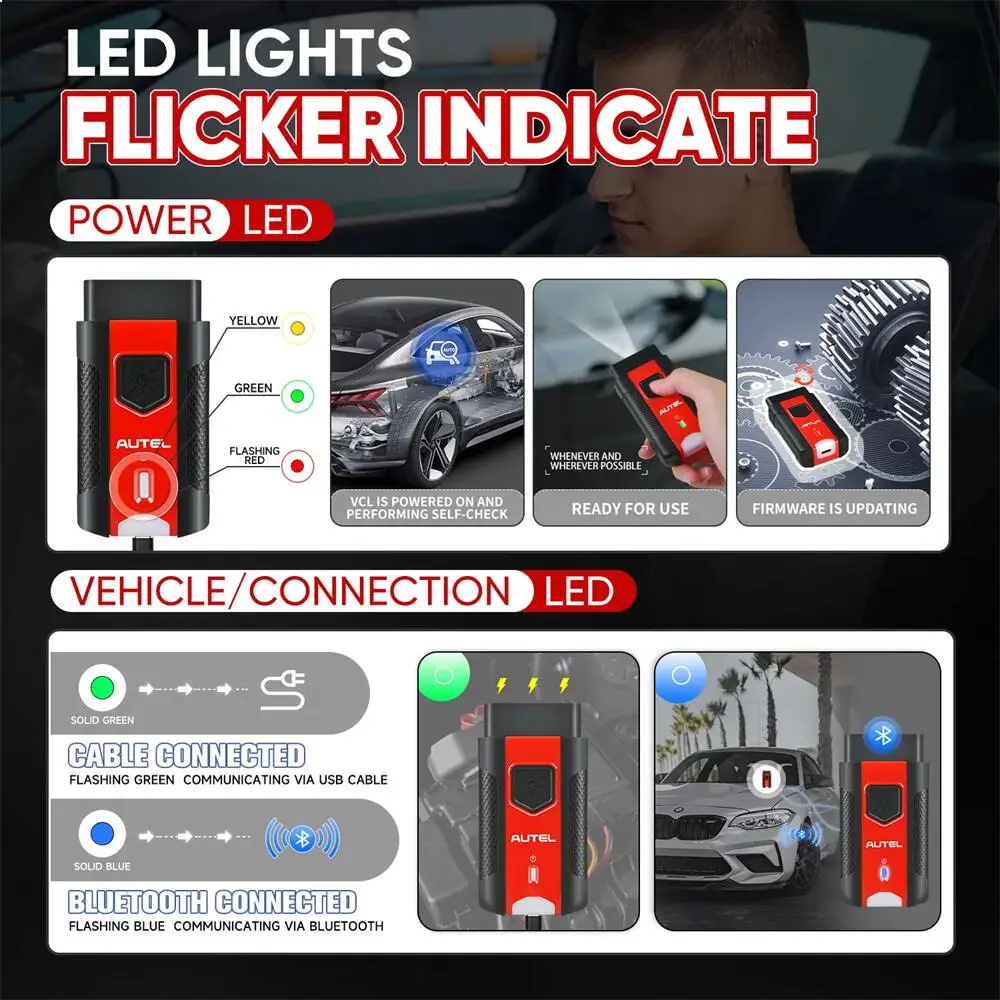

- Light: White LED
